ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light
Product Overview
The ANNHUNG AH-MI-B2 is a medium-intensity white LED aviation obstruction light designed for high-rise structures. With a 360° beam angle, IP66 waterproof rating, and 2000cd light intensity, this light provides reliable visibility with a 20-60 FPM flash rate for aviation safety.
Key Specifications
- Model: AH-MI-B2 (L)
- Applicable Height: 45-105 meters
- Flash Rate: 20-60 flashes per minute
- Light Color: Red (other colors optional)
- Protection Level: IP65
- Effective Light Intensity: 2000cd
The AH-MI-B2 medium-intensity light is designed for installation on high-rise buildings, chimneys, communication towers, tower cranes, wind turbines, and other structures where obstacle height ranges from 45-105 meters. Typically used in conjunction with low-intensity lights installed at lower levels.
Regulatory Compliance
- ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B/C Obstruction Light
- FAA L-864
- CAAC MH6012-2015 Aviation obstruction light, MH 5001-2013 Aerodrome technical standards
Advanced Features
- Built-in photocell for automatic day/night operation (dusk to dawn)
- Surge and lightning protection
- Integrated GPS device for synchronized flashing
Technical Specifications
| Parameter |
Specification |
Parameter |
Specification |
| Compliance |
ICAO FAA CAAC |
Mounting |
190×190×θ12 |
| Product Model |
AH-MI-B2(L) |
Dimension (mm) |
229×229×168 |
| Intensity (cd) |
≥2000cd |
Waterproof |
IP66 |
| Average Power (W) |
5W |
Ambient Temperature |
-40~55˚C |
| Available Colors |
Red (Other color optional) |
Humidity |
0% ~ 95%RH |
| Operate Mode |
Flash of Light |
Weight (kg) |
2.5 |
| Intensity (cd) |
2000cd (at night) |
Wind Speed |
240Km/h |
| LED Life Experience |
>100,000 hours |
Material Quality |
Aluminum Alloy |

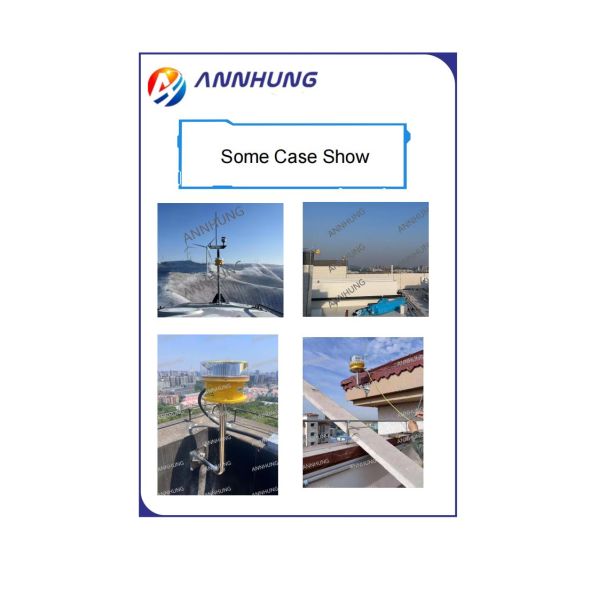

Application Examples
Product Dimensions
Company Profile
ShenZhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, development, production, sales, and after-sales services for aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres. As a domestic market leader in navigation lights, we support green and safe emissions. Our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and buoyage systems. All products are designed and manufactured according to ICAO, FAA, and IALA standards.
