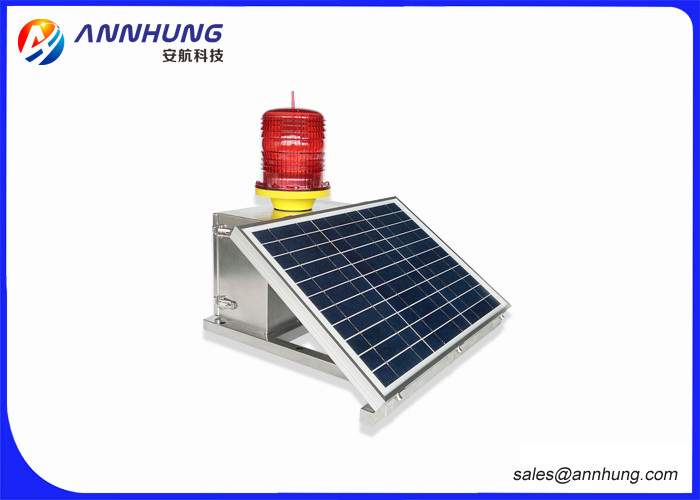

LED Red Medium-intensity Type B Solar Aviation Obstruction Light
Advantage:
1. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
2. Side open of battery box can be open for maintenance convenience every easily.
3. Having lightning-protection function.
4. At least 7 days autonomy.(optional 15days)
5. Strong corrosion resistance and UV protection.
6. Strong impact lamp shape with PC material.
7. International-advanced cold LED with low power consumption, high rightness and service life of light source reaching 100000hours.
8. Low power consumption profession flash switch.
9. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature
10. International advanced solar panel reaching at least 10 years service life.
.
Detail Description:
This product is single solar light. This product can work at night(＜50cd/m²) and close during the day automatically by Solar panel whicfunction is equal to photocell sensor.
Application:
This product is single solar light. Installed in the fuse, it can control flash automatically when ambient brightness is lower than 50 cd/m2.This product can work at night and close during the day automatically by Solar panel which function is equal to photocell sensor. Side on battery box can be opened to be convenient for maintenances.
Specifications:
| SPECIFICATIONS | AH-MS/S Medium-intensity Type B Solar Aviation Obstruction Light Aviation Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red |
| Intensity(cd) | 2,000cd ±25% |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Reflector Type | Fresnel Lens |
| Flash Characteristics | Flash mode (20-60times/minute) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC 12V (Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Power(W) | 20W |
| Circuit Protection | Integrated |
| Temperature Range(℃) | -40~60 |
| Physical Characteristics | |
| Body Material | PC |
| Base Material | SUS304 stainless steel |
| Mounting | 200 by 322 by 12 |
| Height(mm) | 525 |
| Width(mm) | 490 |
| Depth(mm) | 490 |
| Mass(kg) | 14.6 |
| Product Life Expectancy | 5 years plus |
| Environmental Factors | |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Medium-intensity Type B Solar Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
| FAA | Medium-intensity Type B and FAA L-864 |
