Free Maintenance Aircraft Warning Lights With High Borosilicate Glass

Name: Free Maintenance Aircraft Warning Lights With High Borosilicate Glass
Brand: ANNHUNG
Price: 1 USD

Wholesale Free Maintenance Aircraft Warning Lights With High Borosilicate Glass from china suppliers

Brand Name : ANNHUNG

Model Number : AH-MIA

Certification : ICAO

Place of Origin : Shenzhen, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 Pieces Per Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : paper carton 1 piece/box

Light Source : LED

Emitting color : White (other color can be customized)

Weight : 6KG

Protection standard : IP67

Housing : High borosilicate glass

Wind load : 80m/s

Light intensity : 2,000cd ±25%(Night),20,000cd ±25%(Daytime)

Power consumption : 20W(Night), 60W(Daytime)

Contact Now

Free Maintenance Aircraft Warning Lights With High Borosilicate Glass

Advantage:

1.lightweight low wind built-in photocell and monitoring-no additional power supply
2.Integrated automatic flash synchronisation beam optical design
3.high accuracy light beam optical design
4.High borosilicate glass material with good thermal stability, high transmittance.
5.Built-in circuit protect LED, extremely reliable and cost saving.
6.Shockproof and corrosion resistant. It can be used in very poor conditions.
7.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
8.Resistant to heavy rain or storms.
9.Free maintenance and aluminum alloy Material.
10.Five year warranty
11.low power consumption and low cost of ownership.

Detail Description:

This is Single light with Photocell. It can work automatically all day by photocell. This light can change intensity automatically .During the day, White Flashing, light intensity is 20,000cd;At night, White Flashing, light intensity is 2000cd.

Application:

This product is mainly used on the top of high-rise building or structures, e.g. Television transmitting tower, Broadcast Tower, High-rise Building, Tower Crane, and cable stayed bridge communications Tower etc which height is between 105 meter and 150 meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.

Production Picture

SPECIFICATIONS	AH-MI/A Medium-intensity Type A Aviation Obstruction Light
Light Characteristics
Light Source	LED
Emitting Colors	White (other color can be customized)
Intensity(cd)	2,000cd ±25%(Night),20,000cd ±25%(Daytime)
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	3
Reflector Type	Fresnel Lens
Flash Characteristics	Flashing mode(40-60times/minute)
Operation Mode	Dusk-to-dawn Automatically as standard.
LED Lifetime Experience(hours)	>100,000
Electrical Characteristics
Working Voltage	AC220V (option voltage,eg.AC120V,AC110V,DC48V)
Power(W)	20W(Night), 60W(Daytime)
Circuit Protection	Integrated
Temperature Range(℃)	-40~60
Physical Characteristics
Body Material	High borosilicate glass
Base Material	Die-casting aluminum
Mounting	Φ190 by M10option.
Height(mm)	236
Width(mm)	236
Depth(mm)	102
Mass(kg)	6
Product Life Expectancy	5 years plus
Environmental Factors
Humidity	0~90%
Wind Speed	80m/s
Waterproof	IP67
Compliance
ICAO	Medium-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
FAA	Medium-intensity Type A and FAA L-865

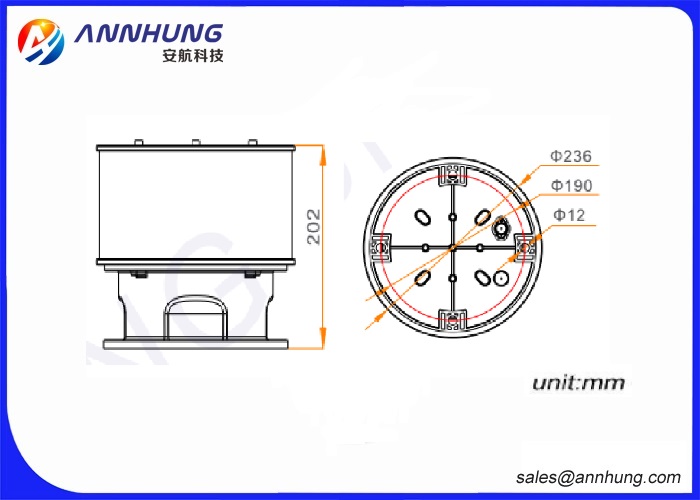

Dimension Drawing

Free Maintenance Aircraft Warning Lights With High Borosilicate Glass

Product Picture

Free Maintenance Aircraft Warning Lights With High Borosilicate Glass
