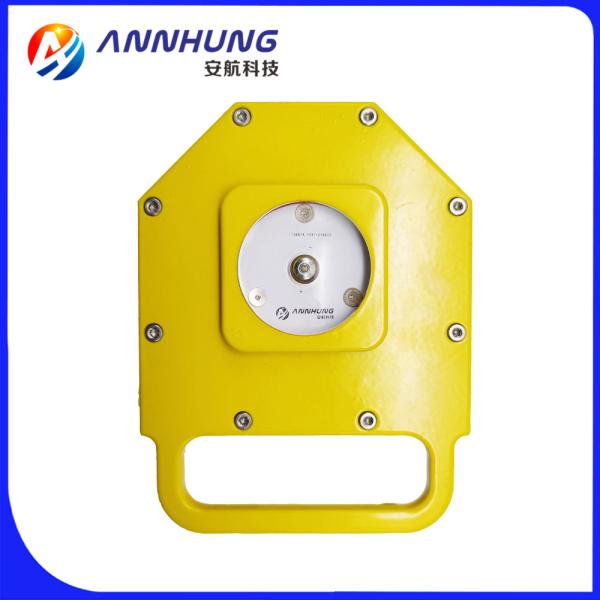

AH-HP-E-FATO(L) Final approach and take-off area lighting
AH-HP-E-FATO(L) Final approach and take-off area lighting. There is a fragile coupling in the base connection for heliport so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Electrical
High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
Physical
Unique designed Glass lens for converging light
Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
VHF pilot to ground remote control
Light intensity adjustable
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | DC48V and AC(110-240VAC), DC12V |
| Power(W) | 5W |
| Mounting | 140×140×θ12 |
| Dimension(mm) | 190×165×166 |
| Weight(kg) | 1.9 |
| Ambient Temperature(℃) | -55~70 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Options Available | VHF Pilot to Ground Remote Control |
