Aviation Obstruction Light, E27 LED Low Intensity Obstacle Lights Steady Burning Single Aviation Light

SHENZHEN ANHANG TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Aviation Obstruction Light, E27 LED Low Intensity Obstacle Lights Steady Burning Single Aviation Light

Brand Name : Anhung

Model Number : AH-LI-BE

Certification : CE,RoHS

Place of Origin : China

MOQ : 1

Price : 60-85

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 piece

Delivery Time : 7 workdays

Packaging Details : carton

Contact Now

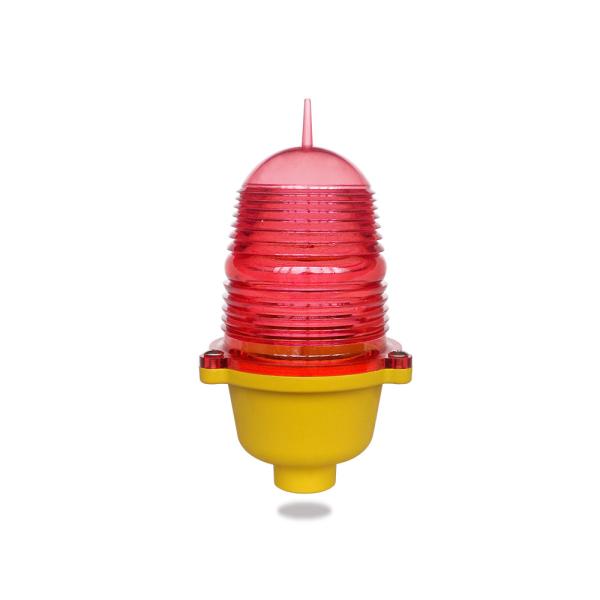

This E27 LED Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.E27 Bulb could be found anywhere in whole world, so it could be simply replaced once bulb is broken.
Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
** FAA L-810
** LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
** Power supply available in DC(12-48VDC) or AC(110-240VAC)
** Bird deterrent spike on top
** Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
** UV protection Powder coated bright yellow color base make better visibility
** Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
** 3/4inch or 1inch(optional) thread hole make pole installation easy
** E27 base LED
** Steady mode
** Surge and lightning protection
Optional
External photocell for day/night operation
NVG(Night Vision Goggles) compatitble LED
Application
AH-LI/BE E27 LED low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
When obstacle object is higher than 45m, AH-LI/BE can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

More product parameter:

Light Source LED
Available Colors Red(Other color is optional)
Intensity(cd) 10cd (type A), 32.5cd(type B), others optional
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady-burning/Flashing(20fpm) adjustable
Operation Mode Dusk-to-dawn Automatically as standard.24hours operation as option
Operating Voltage 48VDC or 12VDC or 110VAC or 220VAC
Base Material Die-casting aluminum
Mounting 3/4 inch pipe thread as standard. 1inch as option
Weight(kg) 0.75
Product Life Expectancy 5 years Plus
Waterproof IP65
Body Material Polycarbonate
